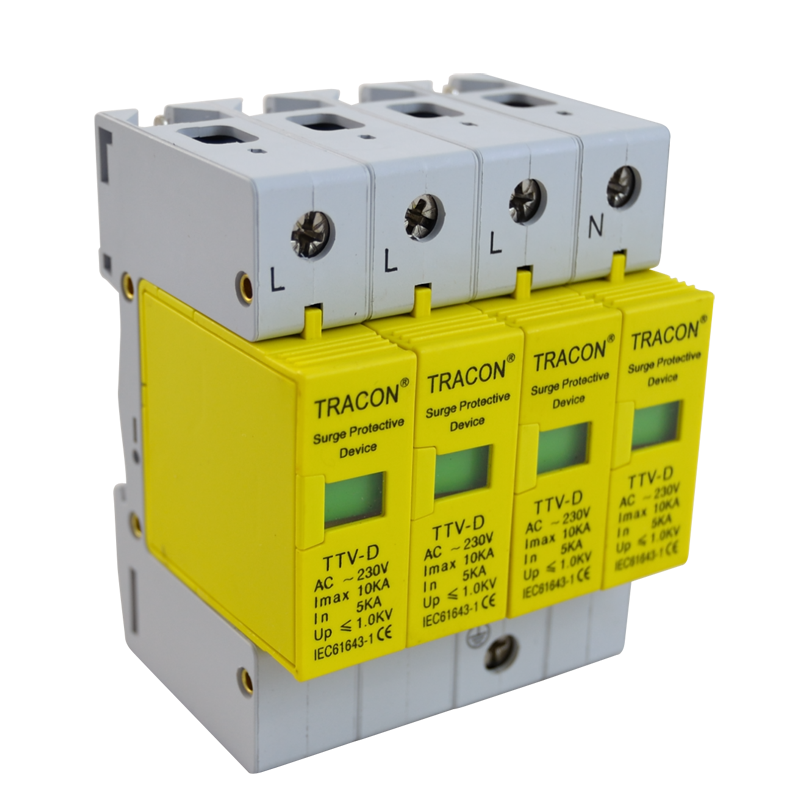

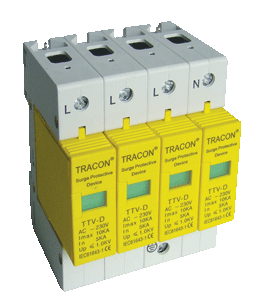

Product datasheet - TTV-D45
AC Surge arrester, Type 2
5kA, 4P
Item number:TTV-D45
(EAN: 5997374144681)
5kA, 4P
AC Surge arrester, Type 2
Item number:TTV-D45 (EAN: 5997374144681)Műszaki adatok: 5kA, 4P
1 pc(s) in stock
Nettó
96.88358 EUR
96.88358 EUR
Bruttó
123.04215 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
80.73368 EUR |
16.14990 EUR - 16,67 % |
5000+
|
70.19840 EUR |
26.68518 EUR - 27,54 % |
10000+
|
63.82677 EUR |
33.05681 EUR - 34,12 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage
Uc (V~)
|
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-D45
|
4
|
5
|
10
|
1,0
|
385/440
|
yellow
|
replaceable
|
72
|
Dimension drawing
