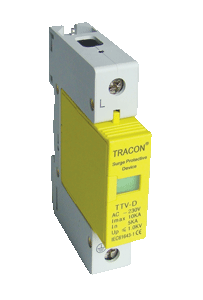

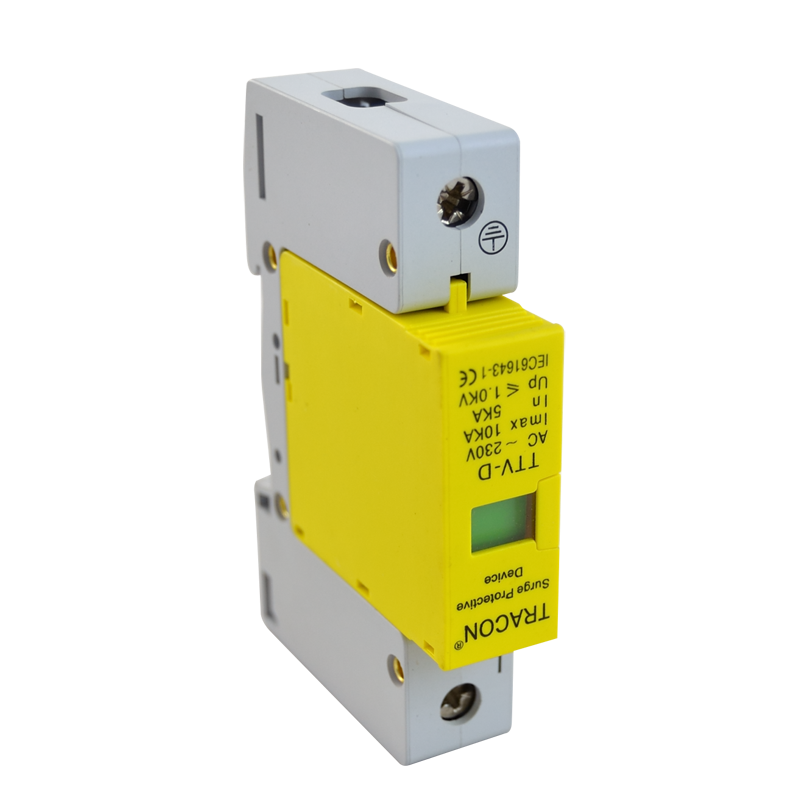

Product datasheet - TTV-D15
AC Surge arrester, Type 2
5kA, 1P
Item number:TTV-D15
(EAN: 5997374144643)
5kA, 1P
AC Surge arrester, Type 2
Item number:TTV-D15 (EAN: 5997374144643)Műszaki adatok: 5kA, 1P
More than 1 pc(s) in stock
Nettó
20.75513 EUR
20.75513 EUR
Bruttó
26.35902 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
17.31697 EUR |
3.43816 EUR - 16,57 % |
5000+
|
15.04589 EUR |
5.70924 EUR - 27,51 % |
10000+
|
13.68956 EUR |
7.06557 EUR - 34,04 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage
Uc (V~)
|
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-D15
|
1
|
5
|
10
|
1,0
|
385/440
|
yellow
|
replaceable
|
18
|
Dimension drawing
