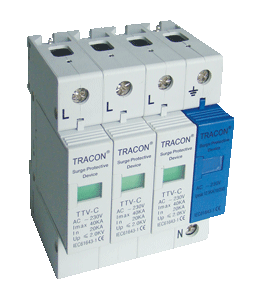

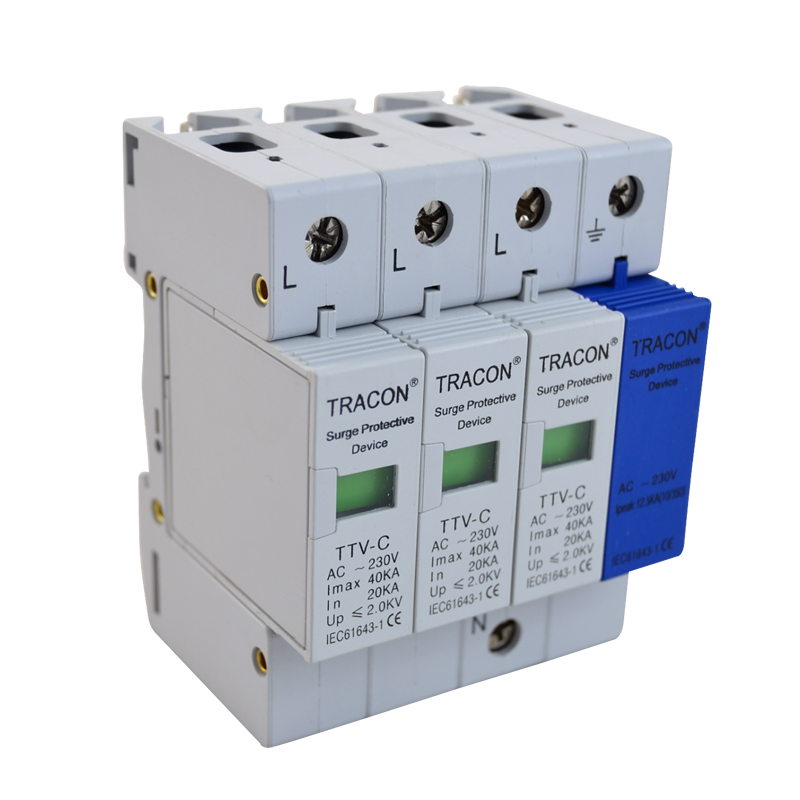

Product datasheet - TTV-C320-2
AC Surge arrester, Type 2, with neutral point
20kA, 3+1P
Item number:TTV-C320-2
(EAN: 5997374144582)
20kA, 3+1P
AC Surge arrester, Type 2, with neutral point
Item number:TTV-C320-2 (EAN: 5997374144582)Műszaki adatok: 20kA, 3+1P
More than 1 pc(s) in stock
Nettó
100.58985 EUR
100.58985 EUR
Bruttó
127.74911 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
83.82487 EUR |
16.76498 EUR - 16,67 % |
5000+
|
72.89531 EUR |
27.69454 EUR - 27,53 % |
10000+
|
66.27133 EUR |
34.31852 EUR - 34,12 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
|
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage
Uc (V~)
|
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-C320-2
|
3+1
|
20
|
40
|
2,0
|
385+320
|
grey + blue
|
replaceable
|
72
|
The TTV-C220-2 and TTV-C320-2 versions are specially deigned for use in TT type distribution networks.
