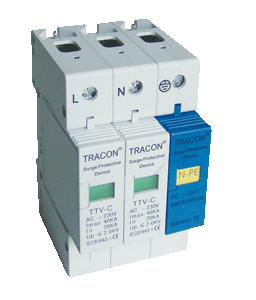

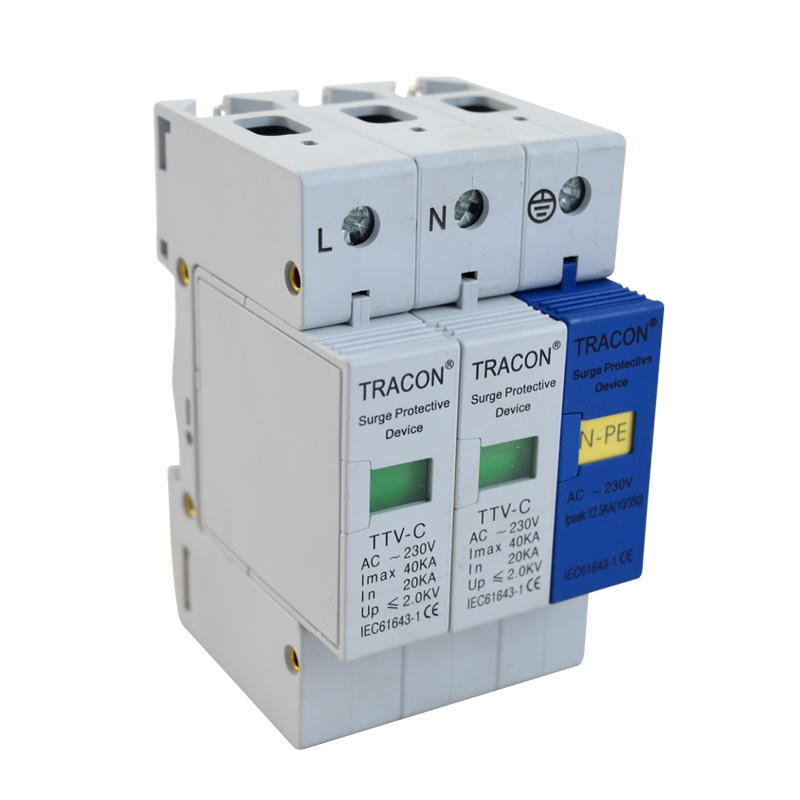

Product datasheet - TTV-C220-2
AC Surge arrester, Type 2, with neutral point
20kA, 2+1P
Item number:TTV-C220-2
(EAN: 5997374144575)
20kA, 2+1P
AC Surge arrester, Type 2, with neutral point
Item number:TTV-C220-2 (EAN: 5997374144575)Műszaki adatok: 20kA, 2+1P
More than 1 pc(s) in stock
Nettó
79.17232 EUR
79.17232 EUR
Bruttó
100.54885 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
65.98745 EUR |
13.18487 EUR - 16,65 % |
5000+
|
57.37627 EUR |
21.79605 EUR - 27,53 % |
10000+
|
52.15595 EUR |
27.01637 EUR - 34,12 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
|
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage
Uc (V~)
|
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-C220-2
|
2+1
|
20
|
40
|
2,0
|
385+320
|
grey+blue
|
replaceable
|
54
|
The TTV-C220-2 and TTV-C320-2 versions are specially deigned for use in TT type distribution networks.
Dimension drawing
