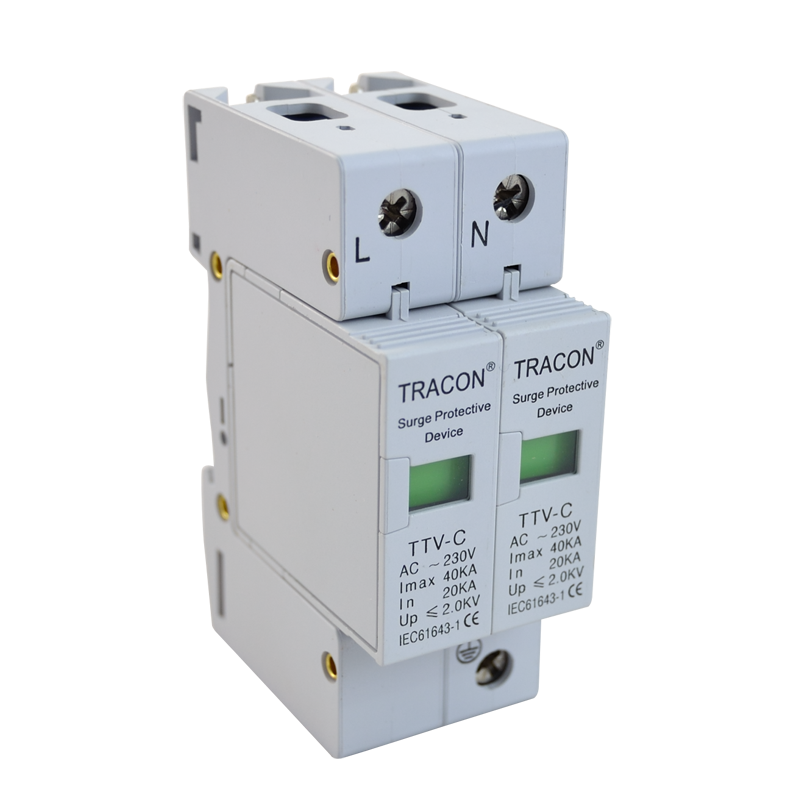

Product datasheet - TTV-C220
AC Surge arrester, Type 2
20kA, 2P
Item number:TTV-C220
(EAN: 5997374144568)
20kA, 2P
AC Surge arrester, Type 2
Item number:TTV-C220 (EAN: 5997374144568)Műszaki adatok: 20kA, 2P
More than 1 pc(s) in stock
Nettó
61.74495 EUR
61.74495 EUR
Bruttó
78.41609 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
51.46201 EUR |
10.28294 EUR - 16,65 % |
5000+
|
44.74340 EUR |
17.00155 EUR - 27,54 % |
10000+
|
40.67438 EUR |
21.07057 EUR - 34,13 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
|
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage
Uc (V~)
|
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-C220
|
2
|
20
|
40
|
2,0
|
385/440
|
grey
|
replaceable
|
36
|
Dimension drawing
