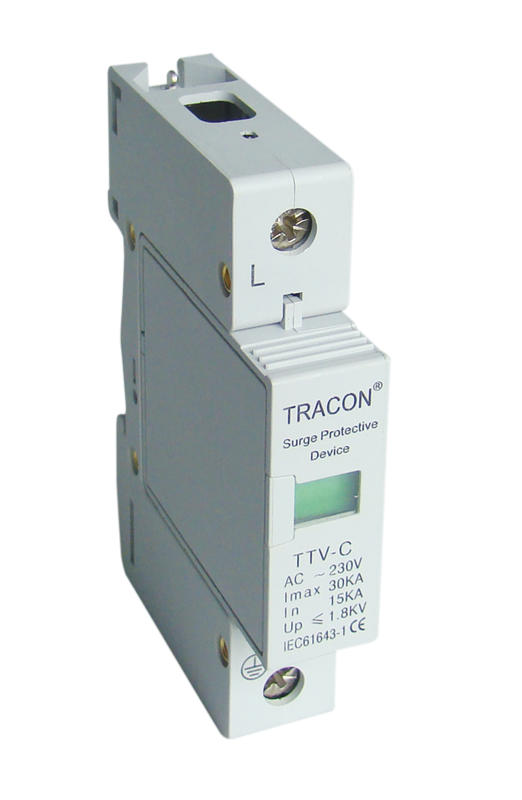

Product datasheet - TTV-C115
AC Surge arrester, Type 2
15kA, 1P
Item number:TTV-C115
(EAN: 5997374144537)
15kA, 1P
AC Surge arrester, Type 2
Item number:TTV-C115 (EAN: 5997374144537)Műszaki adatok: 15kA, 1P
1 pc(s) in stock
Nettó
28.18345 EUR
28.18345 EUR
Bruttó
35.79298 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
23.48358 EUR |
4.69987 EUR - 16,68 % |
5000+
|
20.42393 EUR |
7.75952 EUR - 27,53 % |
10000+
|
18.56291 EUR |
9.62054 EUR - 34,14 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
|
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage
Uc (V~)
|
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-C115
|
1
|
15
|
30
|
1,8
|
385/440
|
grey |
replaceable
|
18
|
Dimension drawing
