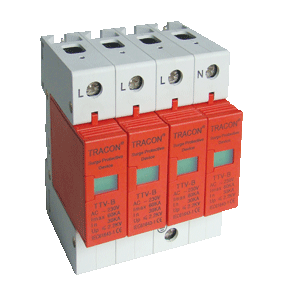

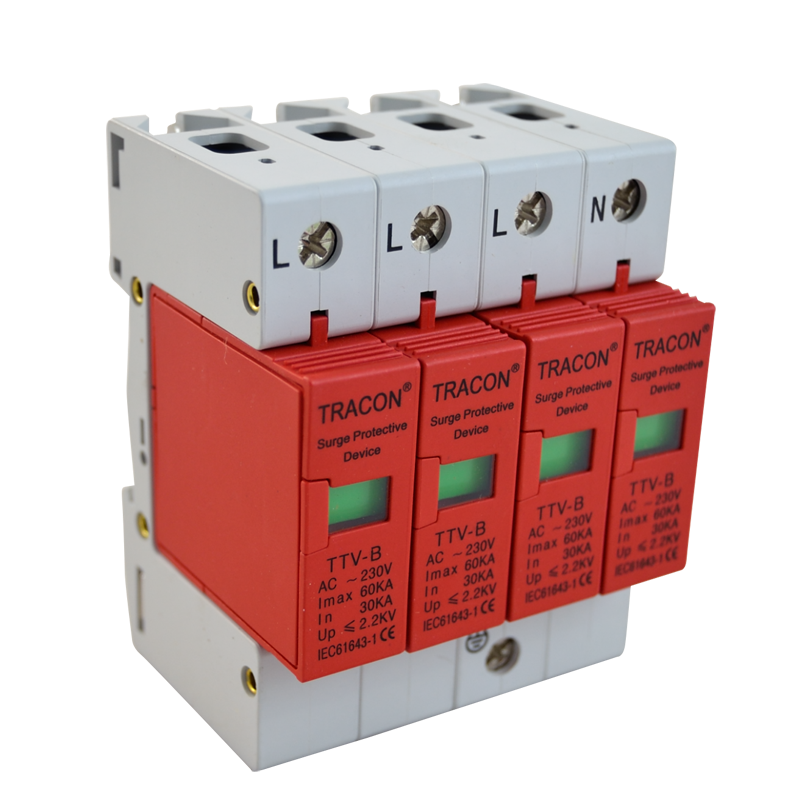

Product datasheet - TTV-B430
AC Surge arrester, Type 2
30kA, 4P
Item number:TTV-B430
(EAN: 5997374144490)
30kA, 4P
AC Surge arrester, Type 2
Item number:TTV-B430 (EAN: 5997374144490)Műszaki adatok: 30kA, 4P
More than 1 pc(s) in stock
Nettó
191.71687 EUR
191.71687 EUR
Bruttó
243.48042 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
159.76406 EUR |
31.95281 EUR - 16,67 % |
5000+
|
138.93007 EUR |
52.78680 EUR - 27,53 % |
10000+
|
126.29720 EUR |
65.41967 EUR - 34,12 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage |
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-B430
|
4
|
30
|
60
|
2,2
|
385/440
|
orange
|
replaceable
|
72
|
Dimension drawing
