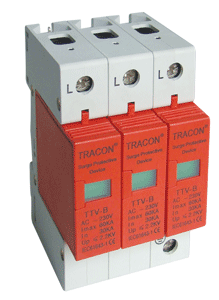

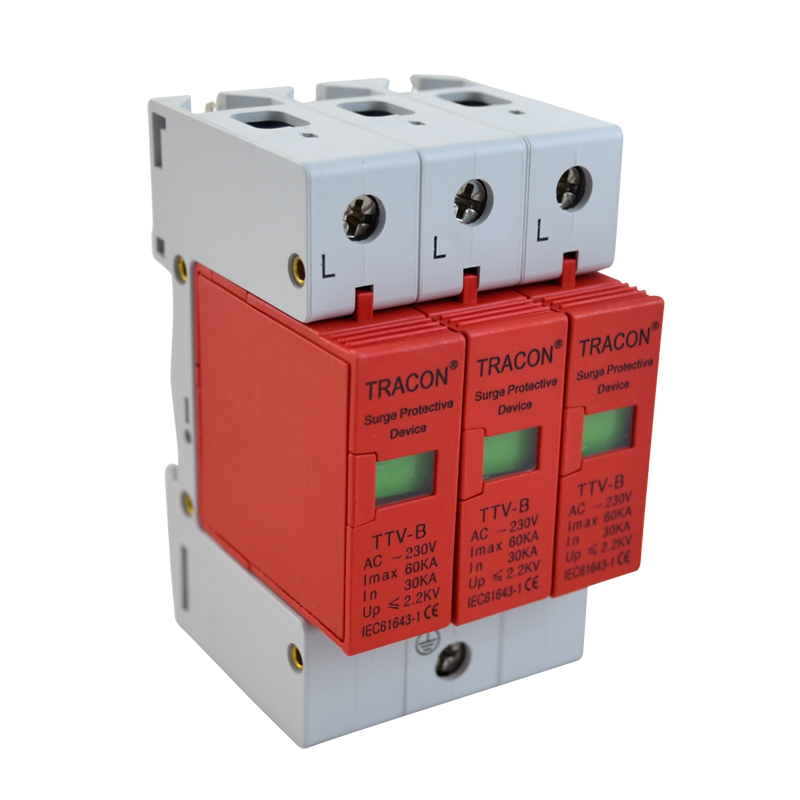

Product datasheet - TTV-B330
AC Surge arrester, Type 2
30kA, 3P
Item number:TTV-B330
(EAN: 5997374177696)
30kA, 3P
AC Surge arrester, Type 2
Item number:TTV-B330 (EAN: 5997374177696)Műszaki adatok: 30kA, 3P
More than 1 pc(s) in stock
Nettó
107.56080 EUR
107.56080 EUR
Bruttó
136.60222 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
89.62874 EUR |
17.93206 EUR - 16,67 % |
5000+
|
77.94215 EUR |
29.61865 EUR - 27,54 % |
10000+
|
70.86080 EUR |
36.70000 EUR - 34,12 % |
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage |
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-B330
|
3
|
30
|
60
|
2,2
|
385/440
|
orange
|
replaceable
|
54
|
Dimension drawing
