Product datasheet - TLK-13E

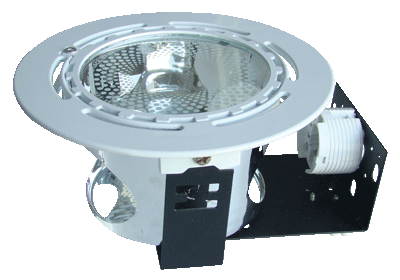

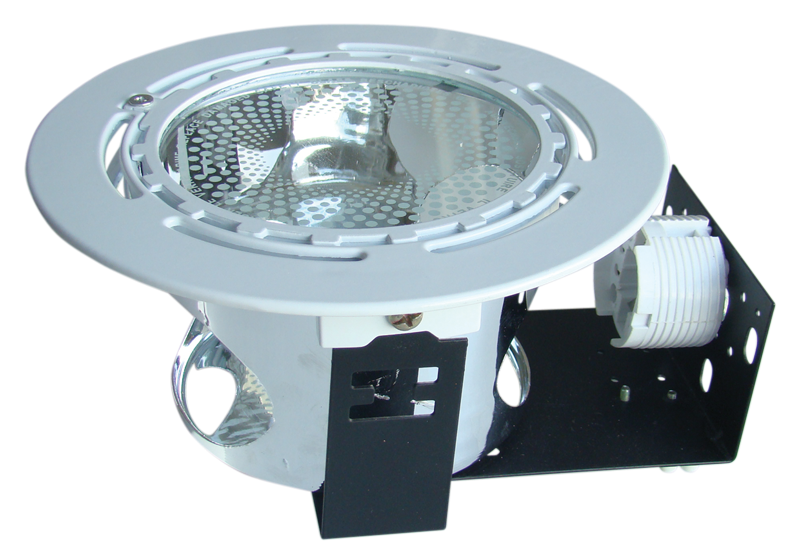

Recessed downlight with ballast
230V, 50Hz, 1×G24d, max.1×13W, , EEI=A
Item number:TLK-13E
(EAN: 5997374141628)
230V, 50Hz, 1×G24d, max.1×13W, , EEI=A
Recessed downlight with ballast
Item number:TLK-13E (EAN: 5997374141628)Műszaki adatok: 230V, 50Hz, 1×G24d, max.1×13W, , EEI=A
More than 1 pc(s) in stock
Nettó
16.41800 EUR
16.41800 EUR
Bruttó
20.85086 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
13.68956 EUR |
2.72844 EUR - 16,62 % |
5000+
|
11.89162 EUR |
4.52638 EUR - 27,57 % |
10000+
|
10.81917 EUR |
5.59883 EUR - 34,10 % |
To be used with bulbs adapted to G24d sockets (compact fluorescent tubes). Separate ballast (TLKE...) should be installed for each bulb. A condenser (TLKC...) for power factor controling can be installed parallel with the lamp circuit to increase the power coefficient. The lamps can be easily installed into false ceilings or wall recesses with two spring fixing elements, without using any tool.
| |
Technical data Rated voltage: 250 V; 50 Hz Protection class: I. class Protection degree: IP 40 (mounted) Terminal capacity: 0,75 - 1,5 mm2 Thickness of mounting plate: 15 - 35 mm Ambient temperature: -5 °C …+40 °C |
|
Lamps with ballast
|
|

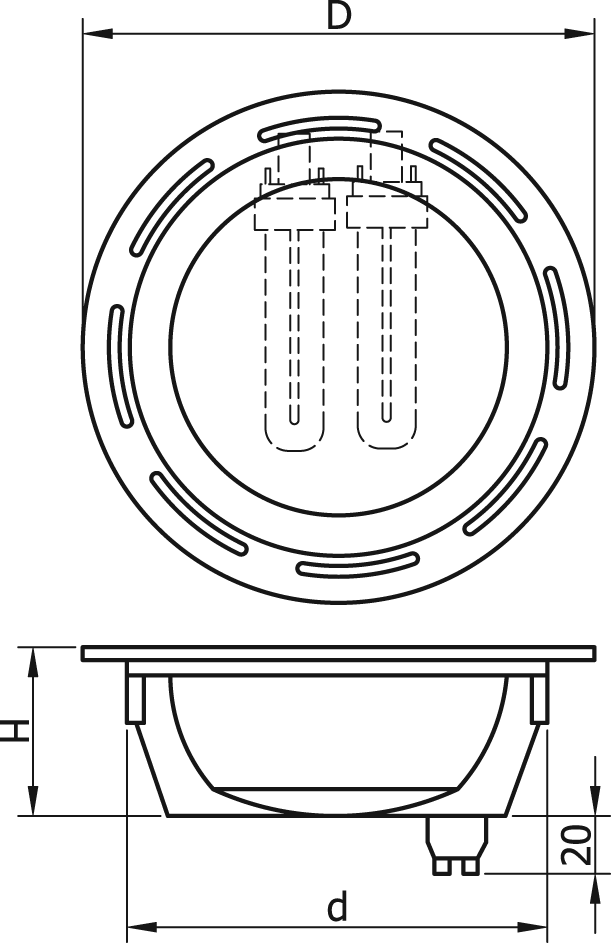

Dimension drawing
