Product datasheet - 200J

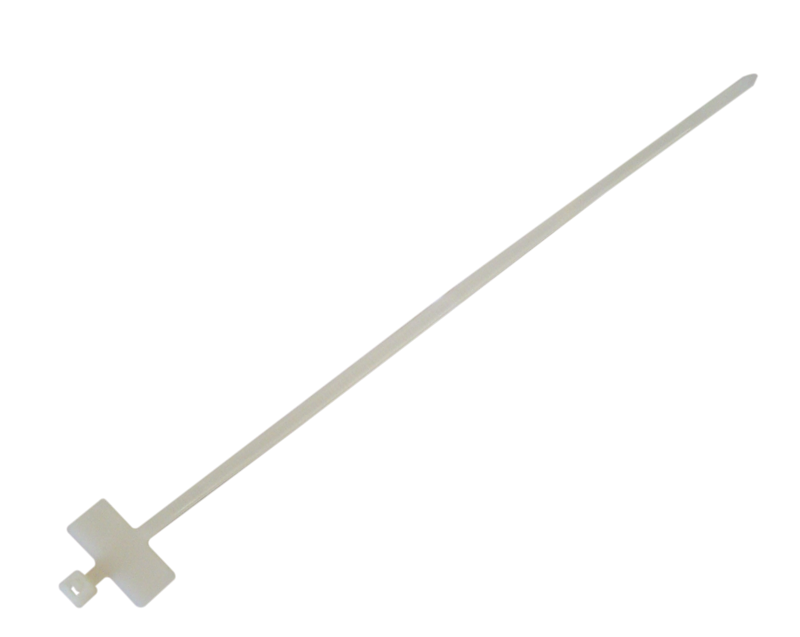

Labelled cable tie, clear
210×2,5mm, D=5-45mm, PA6.6, (a*b=15×30mm)
Item number:200J
(EAN: 5997374100298)
210×2,5mm, D=5-45mm, PA6.6, (a*b=15×30mm)
Labelled cable tie, clear
Item number:200J (EAN: 5997374100298)Műszaki adatok: 210×2,5mm, D=5-45mm, PA6.6, (a*b=15×30mm)
Under purchase: 7/7/16
Nettó
0.06242 EUR
0.06242 EUR
Bruttó
0.07927 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
0.05201 EUR |
0.01041 EUR - 16,68 % |
5000+
|
0.04523 EUR |
0.01719 EUR - 27,54 % |
10000+
|
0.04113 EUR |
0.02129 EUR - 34,11 % |
 |
 |
 |
a
(mm)
|
b
(mm)
|
 |
 |
| 200J |  |
210 × 2.5 mm | 9 | 20 | 5 - 45 mm | 40 N |

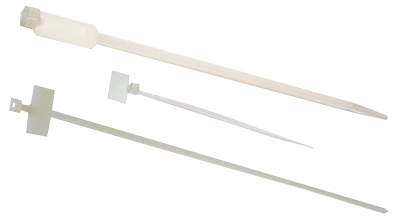

Their properties are same as for conventional cable ties, but they have wider heads and necks, does not have teeth, but have a little plastic plate (marking plate). This plate is designed for marking. They are mainly useful, when it is needed to mark the cable bundles. Alcoholic pen or marked foil is suggested for marking.
|
Material:
|
PA 6.6
|
|
Color:
|
clear
|
|
|
Tracon
code
|
L×
S
(mm)
|
a
(mm)
|
b
(mm)
|
Bundle
diameter
(mm)
|
Max. load
(N)
|
|
200J
|
210×2.5
|
9
|
20.4
|
5-45
|
40
|
10 N ~ 1 kg; The given data are valid for 23 ± 2 °C temperature, at 50 % relative humidity.

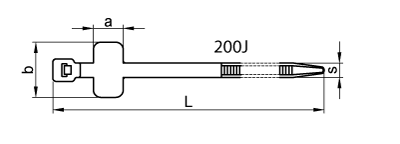

Dimension drawing
