Product datasheet - 190J

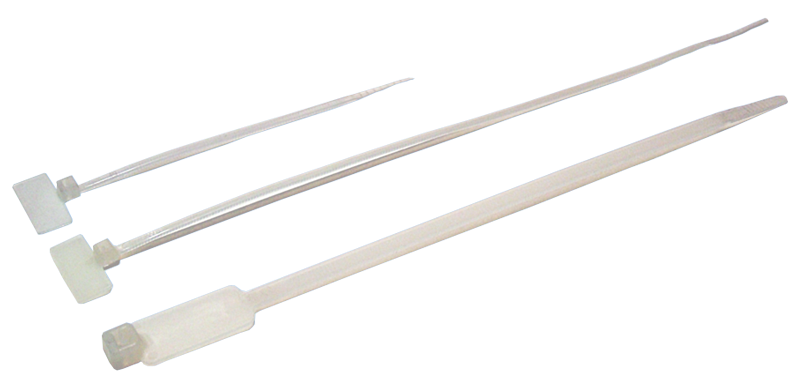

Labelled cable tie, clear
190×3,6mm, D=10-48mm, PA6.6, (a*b=27×13mm)
Item number:190J
(EAN: 5997374100281)
190×3,6mm, D=10-48mm, PA6.6, (a*b=27×13mm)
Labelled cable tie, clear
Item number:190J (EAN: 5997374100281)Műszaki adatok: 190×3,6mm, D=10-48mm, PA6.6, (a*b=27×13mm)
600 pc(s) in stock
Nettó
0.07914 EUR
0.07914 EUR
Bruttó
0.10051 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
0.06596 EUR |
0.01318 EUR - 16,65 % |
5000+
|
0.05734 EUR |
0.02180 EUR - 27,55 % |
10000+
|
0.05214 EUR |
0.02700 EUR - 34,12 % |
 |
 |
 |
a
(mm)
|
b
(mm)
|
 |
 |
| 190J |  |
190 × 3.6 mm | 27 | 13 | 10 - 48 mm | 70 N |
Their properties are same as for conventional cable ties, but they have wider heads and necks, does not have teeth, but have a little plastic plate (marking plate). This plate is designed for marking. They are mainly useful, when it is needed to mark the cable bundles. Alcoholic pen or marked foil is suggested for marking.
|
Material:
|
PA 6.6
|
|
Color:
|
clear
|
|
|
Tracon
code
|
L×
S
(mm)
|
a
(mm)
|
b
(mm)
|
Bundle
diameter
(mm)
|
Max. load
(N)
|
|
190J
|
205×3.6
|
27,5
|
13
|
10-48
|
70
|
10 N ~ 1 kg; The given data are valid for 23 ± 2 °C temperature, at 50 % relative humidity.

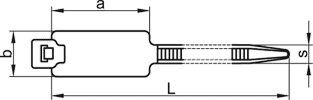

Dimension drawing
