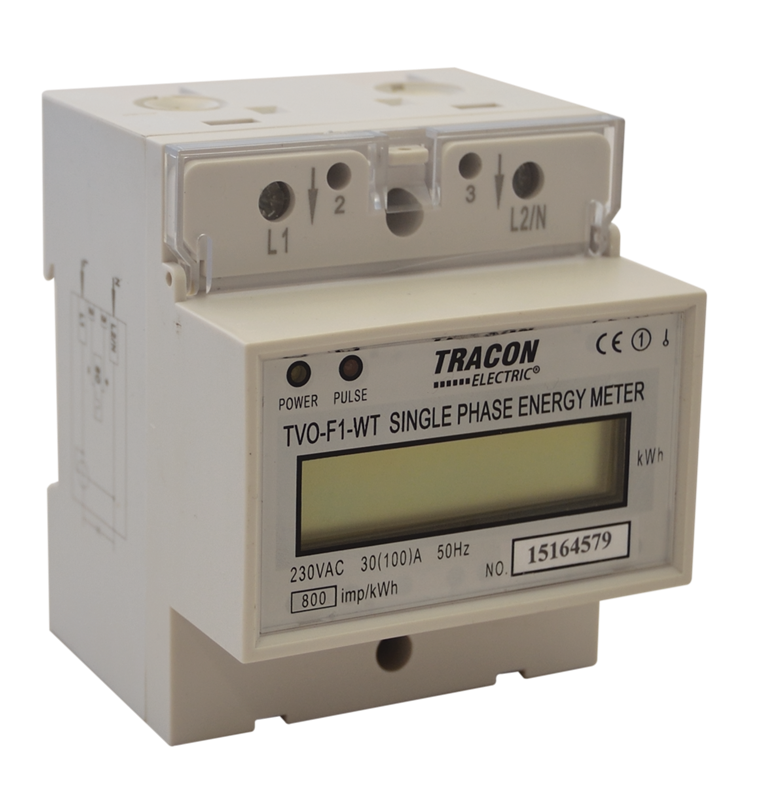

Product datasheet - TVO-F1-WT
Power meter, LCD, direct, windows type 1 phase
230V / 30 (100)A Pd=1W
Item number:TVO-F1-WT
(EAN: 5997374199094)
230V / 30 (100)A Pd=1W
Power meter, LCD, direct, windows type 1 phase
Item number:TVO-F1-WT (EAN: 5997374199094)Technical data 230V / 30 (100)A Pd=1W
More than 5 pc(s) in stock
Net
56.65789 EUR
56.65789 EUR
Gross
71.95552 EUR
Type of meter:
Electronic
Nominal current (In):
100 A
Max. current (Imax):
120 A
Nominal voltage (Un) N-L:
230 -230 V
Frequency:
50 -50 Hz
Accuracy class:
B
Pole type:
Single phase
Model:
Direct measurement
Energy type:
Effective power
Suitable for:
Purchase
Tariff type:
One-tariff
Pulse output:
Electrical
Pulse type:
S0
Pulse rate:
800 -800 Imp/kWh (kvarh)
Type of indication:
Digital
Mounting method:
DRA (DIN-rail adapter)
Width:
75 mm
Depth:
74 mm
Height:
89 mm
Number of positions total (counter):
6
Degree of protection (IP):
IP40
Warranty:
2 year
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|||||||
| TVO-F1-WT | 220-240 V AC | 30 (100) A | 80mA-100A | 800 | 1 | 25 | 16 | 200 g |
The wire must be put through the window, after that the screw make the contact with the insulation cutting.
The reduction ring has been included for the thinner wires.
|
|
 |
 |
| min. 12V, max. 27V | >30 ms | max. 27 mA |
Dimensional drawing
