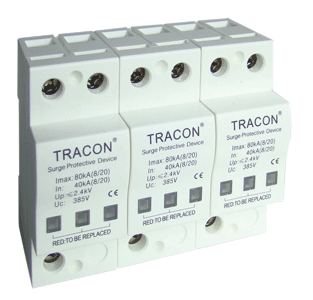

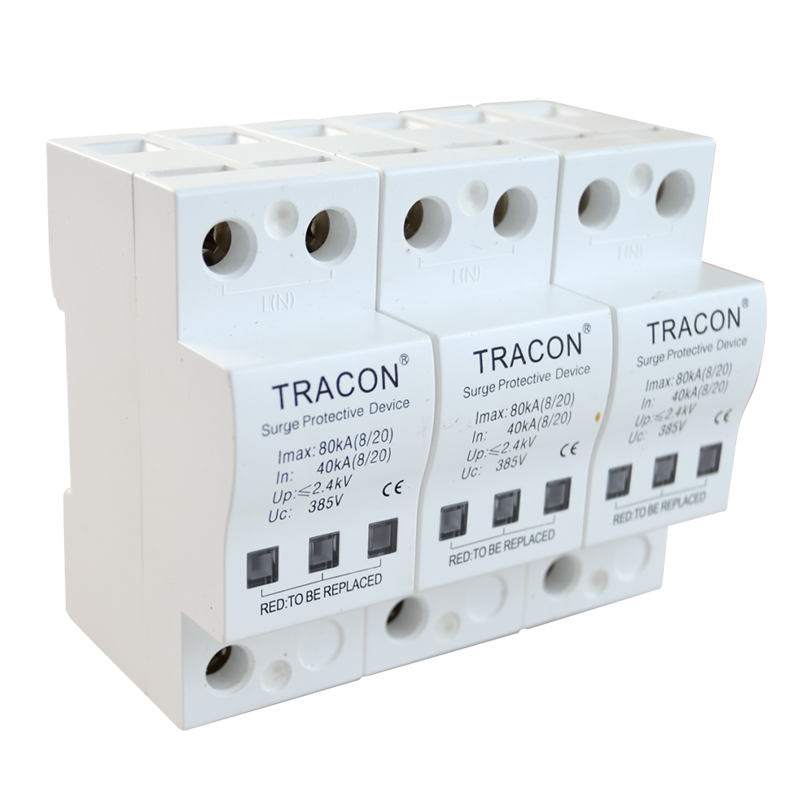

Product datasheet - TTV-B340
AC Surge arrester, Type 2
40kA, 3P
Item number:TTV-B340
(EAN: 5997374177702)
40kA, 3P
AC Surge arrester, Type 2
Item number:TTV-B340 (EAN: 5997374177702)Műszaki adatok: 40kA, 3P
More than 1 pc(s) in stock
Nettó
212.62972 EUR
212.62972 EUR
Bruttó
270.03974 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
177.19143 EUR |
35.43829 EUR - 16,67 % |
5000+
|
154.08636 EUR |
58.54336 EUR - 27,53 % |
10000+
|
140.08138 EUR |
72.54834 EUR - 34,12 % |
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage |
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-B340
|
3
|
40
|
80
|
2,5
|
385/440
|
-
|
irreplaceable
|
108
|
Dimension drawing
