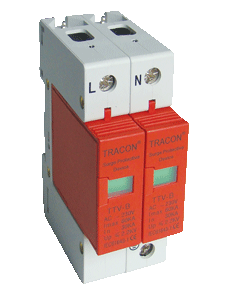

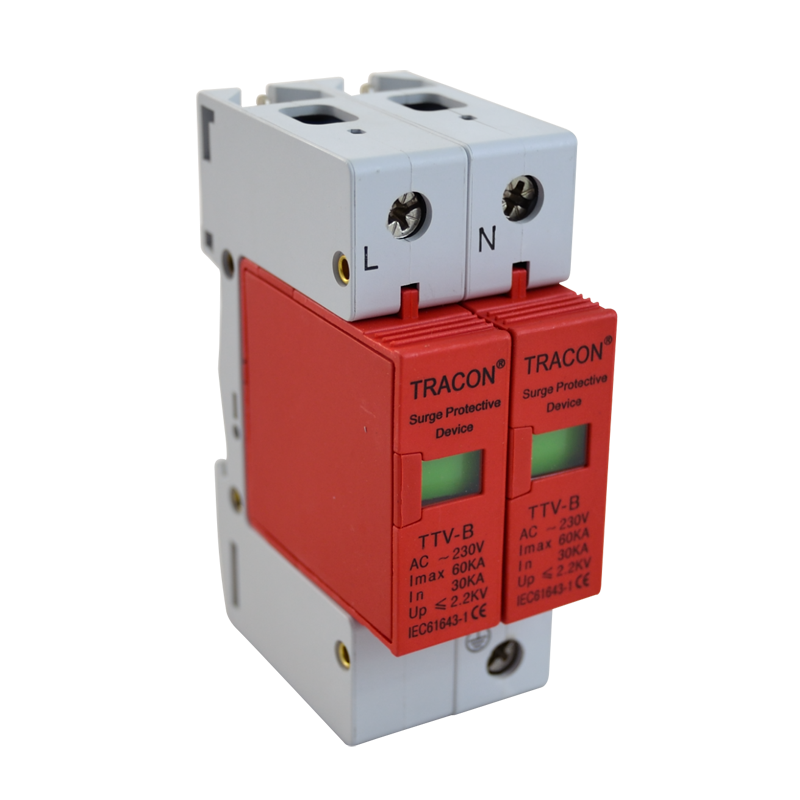

Product datasheet - TTV-B230
AC Surge arrester, Type 2
30kA, 2P
Item number:TTV-B230
(EAN: 5997374144452)
30kA, 2P
AC Surge arrester, Type 2
Item number:TTV-B230 (EAN: 5997374144452)Műszaki adatok: 30kA, 2P
More than 1 pc(s) in stock
Nettó
95.11718 EUR
95.11718 EUR
Bruttó
120.79882 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
79.26695 EUR |
15.85023 EUR - 16,66 % |
5000+
|
68.92092 EUR |
26.19626 EUR - 27,54 % |
10000+
|
62.65969 EUR |
32.45749 EUR - 34,12 % |
The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs wave-form) over currents.
The type 2 arresters must install into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices. These protectors are modular types with changeable insert.
|
Tracon code
|
Number
of poles
|
Rated current |
Imax
(kA)
|
Signing voltage |
Max. voltage |
Insert
colour
|
Insert version
|
W
(mm)
|
|
TTV-B230
|
2
|
30
|
60
|
2,2
|
385/440
|
orange
|
replaceable
|
36
|
Dimension drawing
