Product datasheet - ONVSZ25

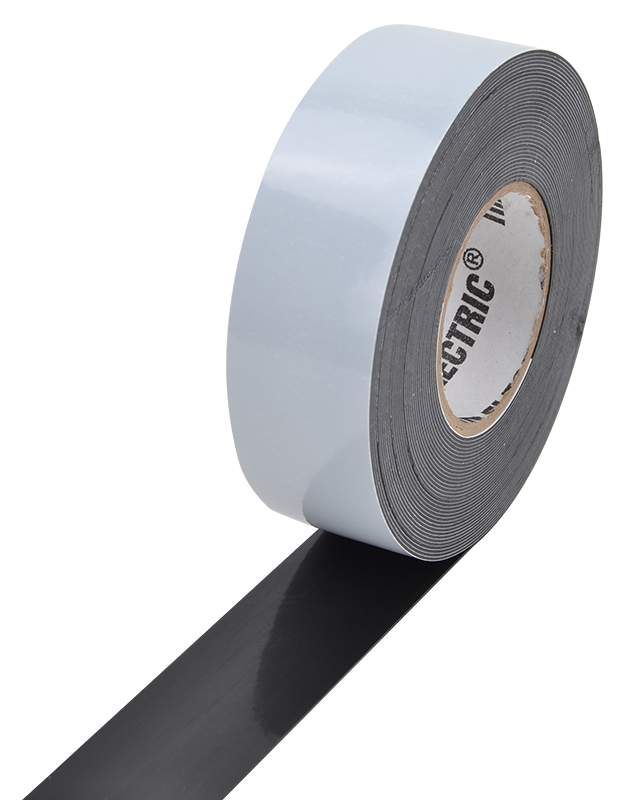

Self-amalgamating tape, black
10m×25mm, -40°C-75°C
Item number:ONVSZ25
(EAN: 5997374113359)
10m×25mm, -40°C-75°C
Self-amalgamating tape, black
Item number:ONVSZ25 (EAN: 5997374113359)Műszaki adatok: 10m×25mm, -40°C-75°C
More than 500 pc(s) in stock
Nettó
7.60180 EUR
7.60180 EUR
Bruttó
9.65429 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
6.34009 EUR |
1.26171 EUR - 16,60 % |
5000+
|
5.51998 EUR |
2.08182 EUR - 27,39 % |
10000+
|
5.01530 EUR |
2.58650 EUR - 34,03 % |
 |
 |
 |
| ONVSZ25 | 10 m × 25mm | 0,5±0,05 |
Poly-isobutylene, flammable, black coloured tapes separated with plastic film against self – adhesion.
Main applications: this type of insulating tapes is mainly used for insulating connections of low current and television cables and wires and also for telecom cable jointing, anticorrosion prevention of pipelines, low and medium voltage power cable installation up to 36 kV but this latter – due to the flammability – only in cases when there is no heat effect. When using the tape at higher than 1 kV voltage level, these insulating tapes should be used together with potential controlling tapes. In addition to insulation and waterproofing these insulating tapes provide excellent self-vulcanising properties.
|
Technical data
Thickness: 0,5 mm ± 0,05 mm
Tensile strength: min. 1 N/mm
2
Elongation: min. 500 %
Specific resistance: min. 10
14 Ohm × cm
Breakdown strength: min. 20 kV/mm
Operation temperature: -40 ˚C ... +75 ˚C
They are not oil resistant, so they must not be subjected to the effect of hydrocarbons.
|
|
Dimension drawing
