Product datasheet - MNG-002R
Miniature pushbutton with light, red
1×NO, 2V AC/DC
Item number:MNG-002R
(EAN: 5997374133401)
1×NO, 2V AC/DC
Miniature pushbutton with light, red
Item number:MNG-002R (EAN: 5997374133401)Műszaki adatok: 1×NO, 2V AC/DC
More than 5 pc(s) in stock
Nettó
0.96048 EUR
0.96048 EUR
Bruttó
1.21981 EUR
Vegye meg olcsóbban ezt a terméket
Mennyiség |
Kedvezményes nettó ár |
Megtakarítás |
1000+
|
0.80056 EUR |
0.15992 EUR - 16,65 % |
5000+
|
0.69615 EUR |
0.26433 EUR - 27,52 % |
10000+
|
0.63275 EUR |
0.32773 EUR - 34,12 % |
They are suitable to indicate and switch the functions of household machines, instruments, and control panels. They can be fixed into ∅16.2 mm size holes by the help of plastic pressing rings.
|
|
|
|
|
Technical data
Switching element
Rated voltage: 250 V AC
Operating current: 3 A (125 V, AC1); 1,5 A (250 V, AC1)
Insulation resistance: 1000 MΩ
Mechanical life: 10
5 switching cycle
Ambient temperature: -55 ˚C…85 ˚C
Max. humidity: 98 %, +40 ˚C
Signal lamp
Operating voltage: 2, 6, 12, 24 V AC/DC, 110, 230 V AC
Max. current consumption: 20 mA
|
|
Wiring examples
|

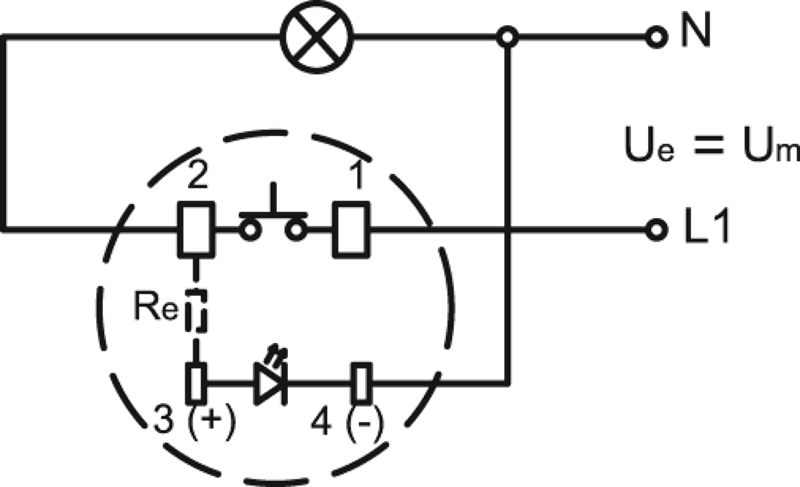

The LED lights only on „BE” (ON) position of switch
|

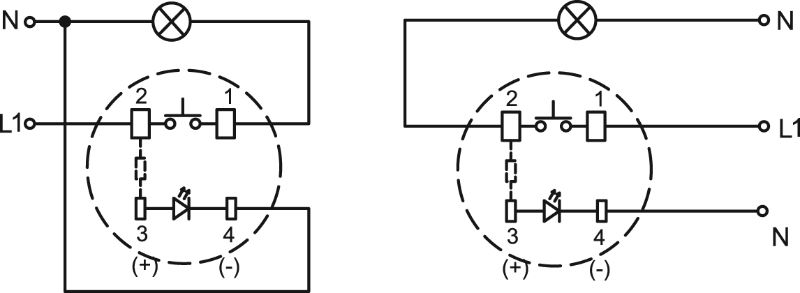

The LED lights both „BE” (ON) and
„KI” (OFF) position of switch
|

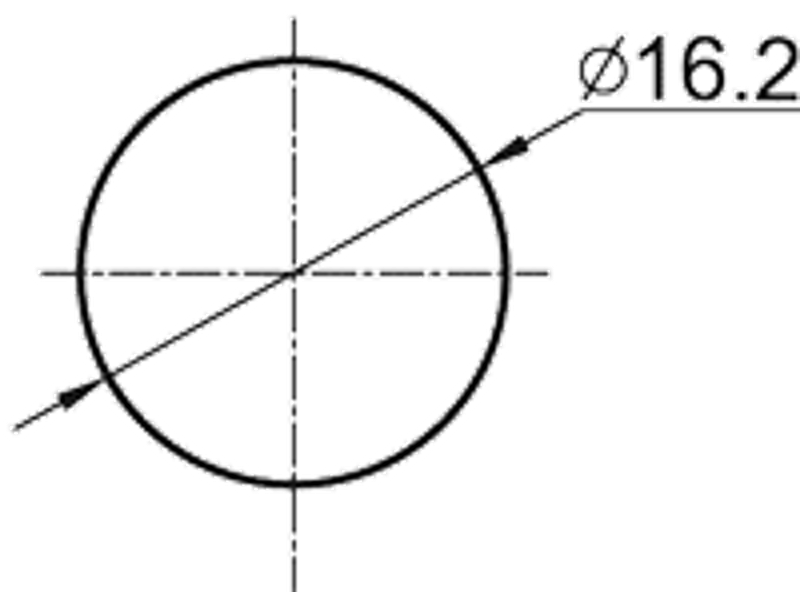

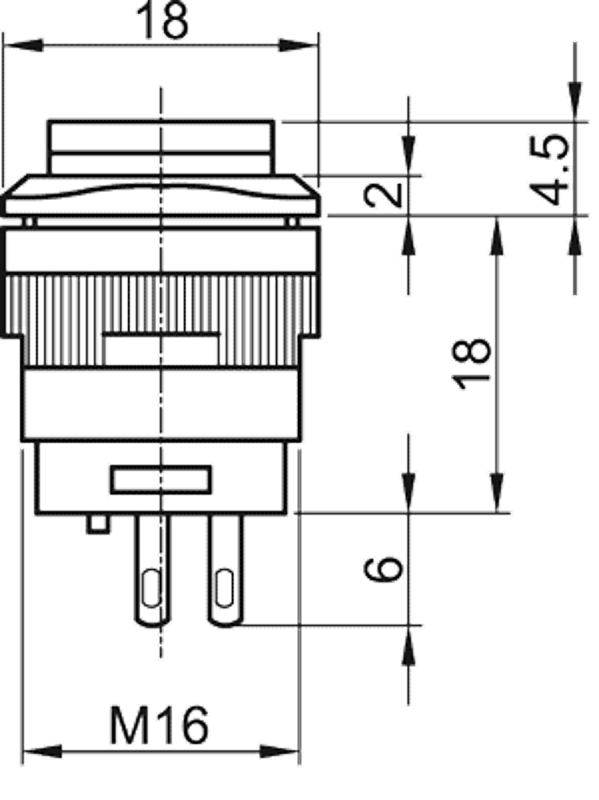

Dimension drawing
